Phantom 2.0 Fixing Inverted Headlight and Stem Light ControlsUpdated 14 days ago

Fixing Inverted Headlight and Stem light Controls on Phantom 2.0

Problem Description

On the Apollo Phantom 2.0 (both 52V and 60V versions), pressing the M button may toggle the stem light instead of the headlight—or vice versa. This issue usually occurs when the cables are inverted at the top of the stem.

Possible Causes

• Headlight and stem light cables are connected to the wrong ports at the top of the stem.

Solution

Step 1: Switch Cables at the Stem

1. Remove the headset.

• Disconnect both the headlight cable and the stem light cable.
• Switch the two connections.
• Both cables are red.
• You can do this directly from the top of the scooter once the headset is removed.

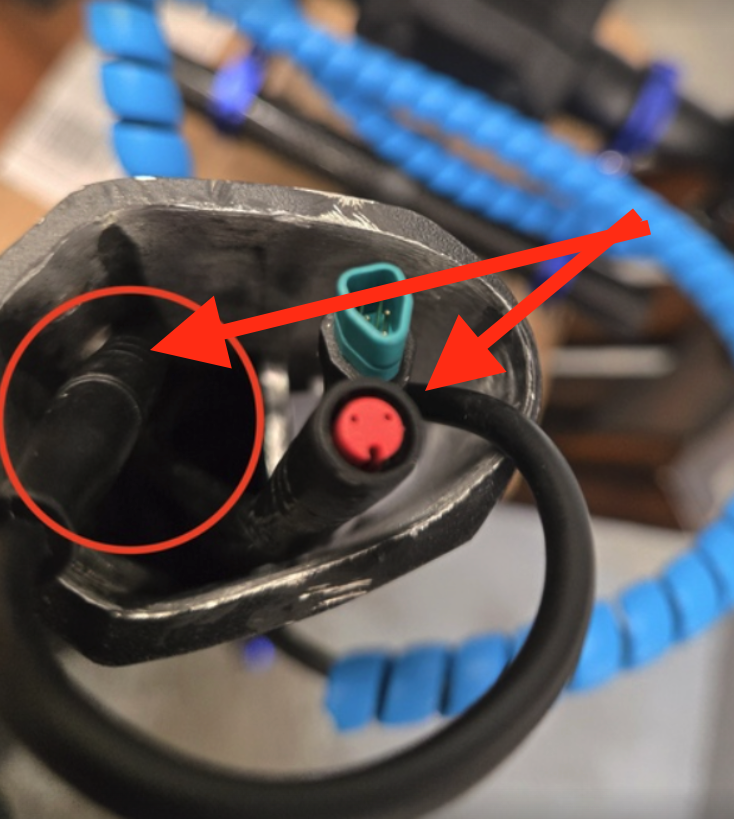

• See the included picture for reference.

Step 2: Switch Cables at the Box Light Level (If Step 1 Doesn't Work)

• Switch the connections at the box light level.
• Follow the step-by-step instructions video here.

⚠️ Important: Both cables are red, so ensure you are switching the correct connections as shown in the reference image or video.

Verify the Fix

• Press the M button. The headlight and stem light should now toggle correctly according to their intended functions.

Still Experiencing Issues?

If these solutions don't resolve your problem, please contact support with:

• Description of the issue and steps you've already tried
