How to Install Direction Washers and Nuts on City 2024Updated 19 days ago

How to Install Direction Washers and Nuts on City 2024

Overview

This guide explains how to correctly install the washer and bolts on the City 2024 bearing/stem. You will learn the correct order of parts and receive visual and video aids for proper assembly.

Before You Begin

• Ensure you have all 5 parts for the assembly
• Have the direction nut and necessary tools ready

Steps

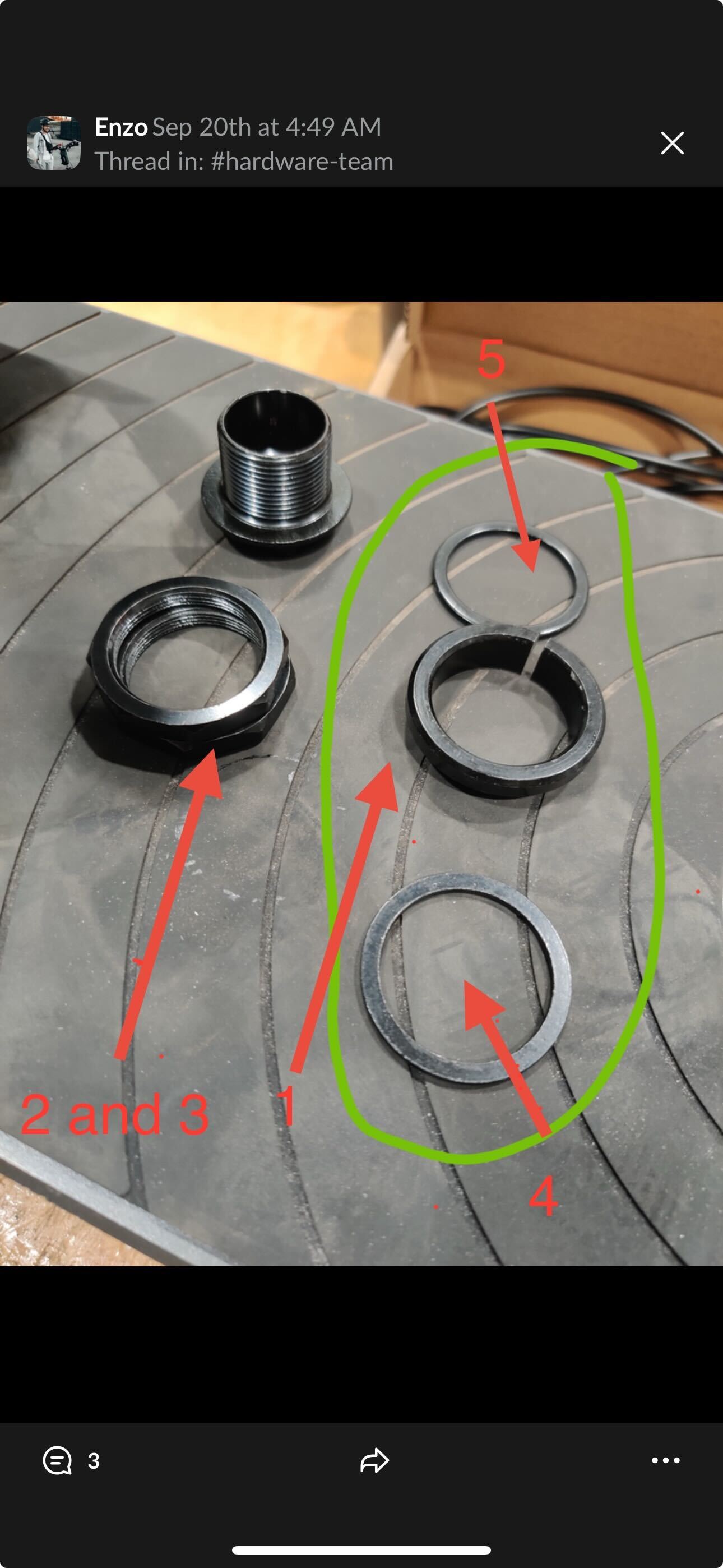

1. Gather all 5 parts as shown in the reference image.

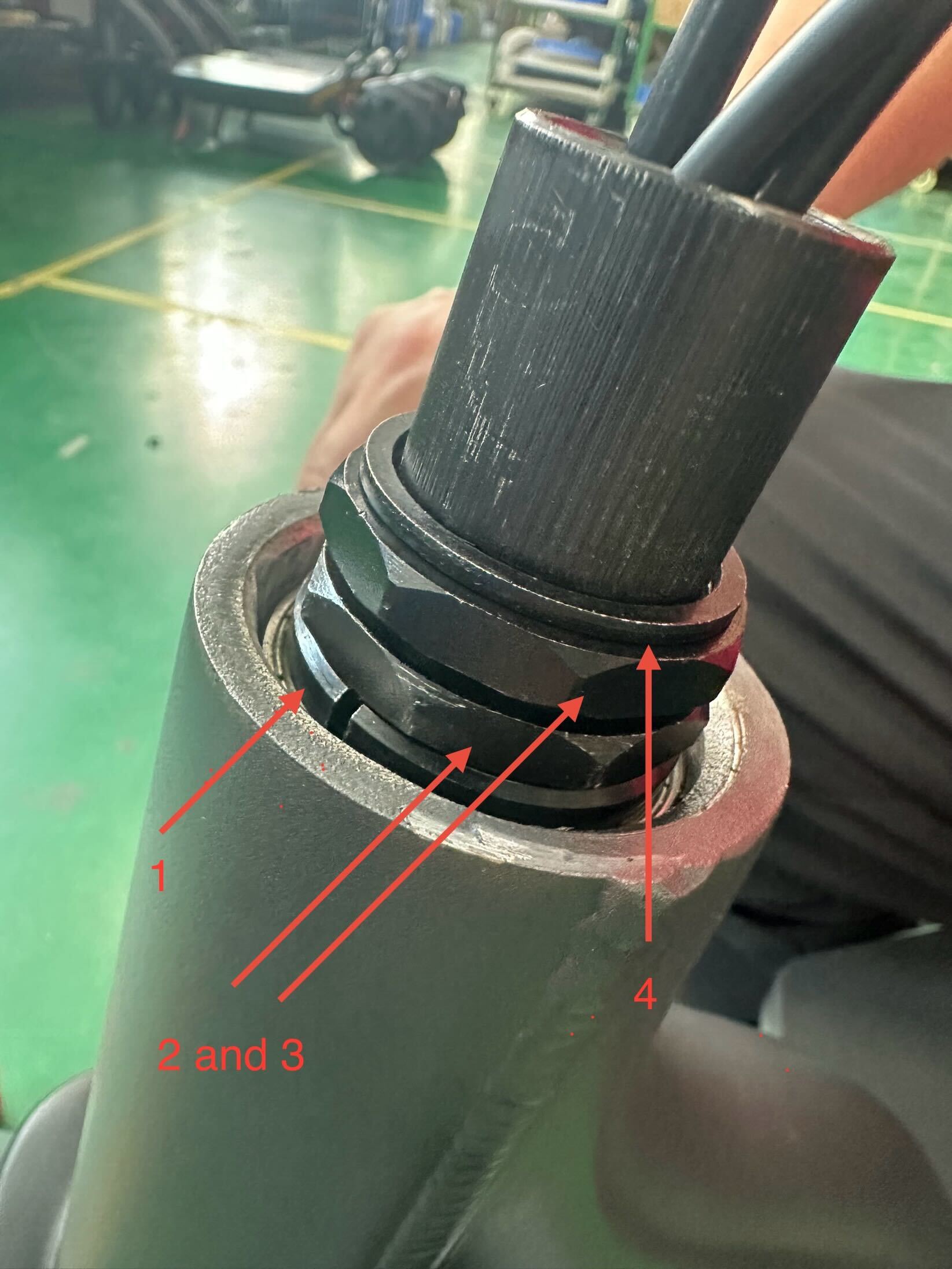

2. Arrange the parts in the following order from bottom to top: 1, 2, 3, 4. Note: When placing the bearings, do not use part #5 at this step.

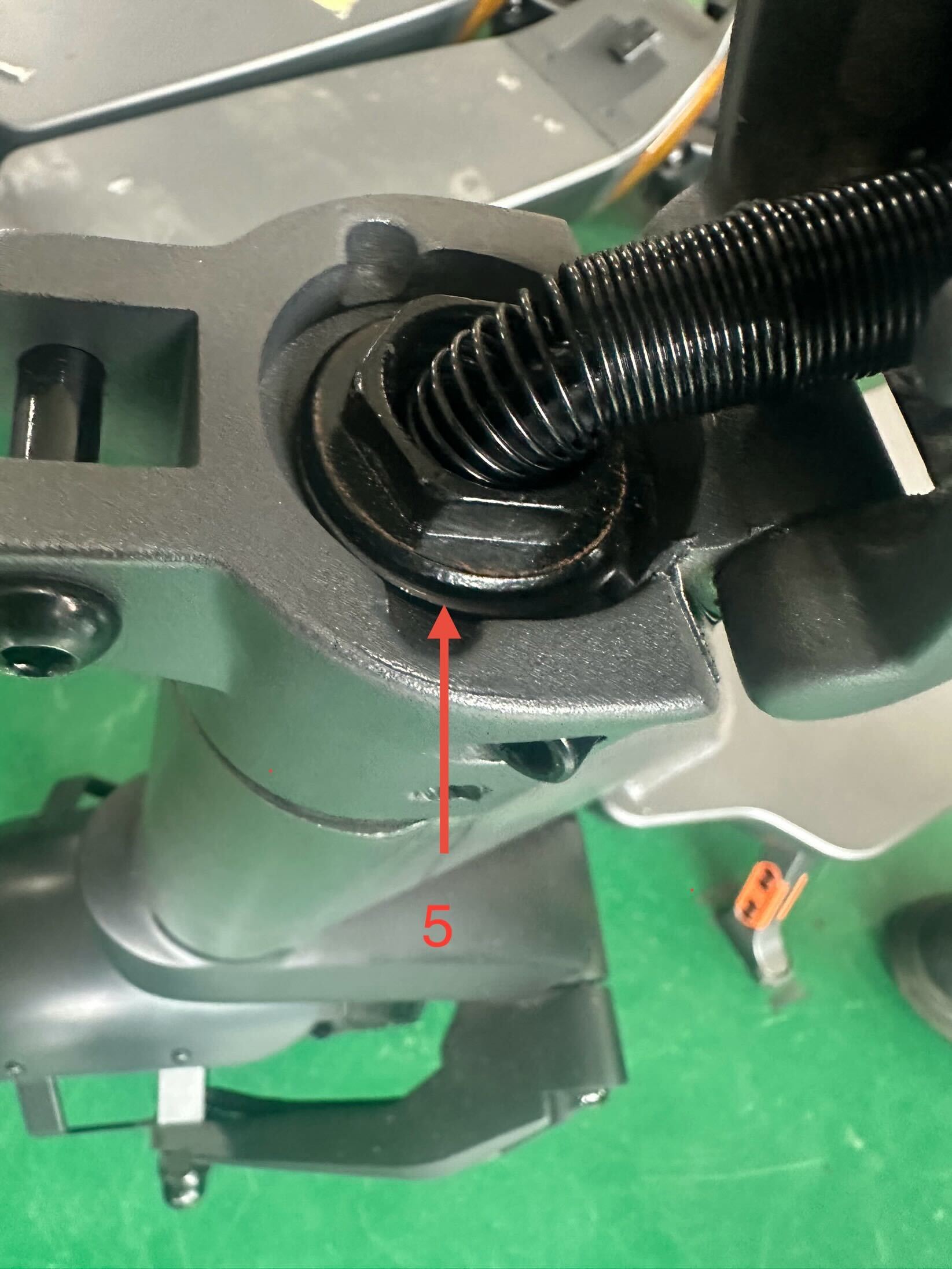

3. Place the last washer under the direction nut as illustrated in the provided picture.

💡 Tip: Here's the video to help you confirm the correct order and placement of each part.

Verify Your Results

• You should see the washer positioned directly under the direction nut.
• All parts should be stacked in the specified order, with no extra pieces left unused (except part #5, which is not used in the bearing placement step).

Still Need Help?

If you encounter issues, please contact support.
